The choice between a filter cartridge design and a bag design for a welding fume extractor depends on several factors, including the specific application, the volume of fumes generated, the type of welding processes used, maintenance requirements, and cost considerations. Here is a comparison to help you decide which might be more suitable:

Bag design

• Simplicity: Bag filters are a simpler design and may be more suitable for less complex welding applications with lower fume volumes.

• Maintenance: Bag filters may require more frequent replacement and can be messier to change due to the accumulation of dust and debris.

• Airflow: Bag filters may have higher resistance to airflow, which can result in reduced air volume and less efficient extraction.

Filter cartridge design

• Efficiency: Filter cartridges often provide a higher filtration efficiency and can capture finer particles due to their pleated design, which increases the surface area.

• Airflow: Cartridge filters typically offer less resistance to airflow, which can result in higher air volumes being moved through the system.

• Maintenance: Cartridge filters are usually easier to replace and clean, and they often have a longer service life compared to bag filters.

• Space: Cartridge filters can be more space-efficient, as they can pack a larger filtration area into a smaller footprint.

In summary, if your welding operation involves a high volume of fumes, requires a high level of filtration efficiency, and has a need for easier maintenance with a longer filter life, a filter cartridge design might be the better choice. On the other hand, if you are looking for a more cost-effective solution for a smaller operation with less demanding filtration needs, a bag design could be more appropriate.

Which type of welding fume extractor is more suitable in metal welding

In metal welding factories common types of welding dust - ultra-small metal welding dust as an example,in the current market, which type of welding fume extractor is more suitable?

Surely filter cartridge design,reasons are as follows:

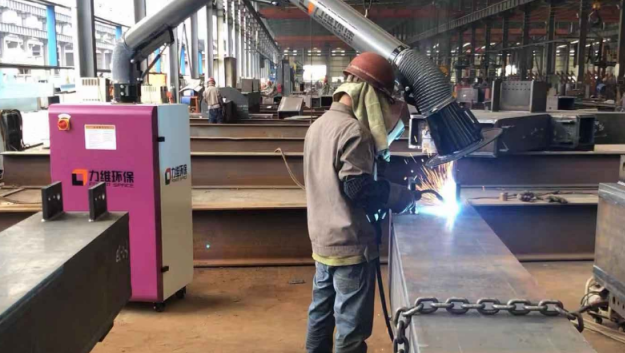

Firstly, when the welding fume extractor is started, the welding dust will be attracted by the wind into the main machine, and the purification process can be completed when it passes through the filter cylinder. As shown in the picture below, the filter cartridge welding fume collector adopts high-quality imported filter cartridge, which has tiny filter holes and excellent air permeability, and the filtering efficiency of welding dust is as high as 99%

Secondly, the cost of filter cartridge fume extractor will be relatively low. On the one hand, it mainly relies on the physical filtration of the filter barrel, and only the fan operation of the dust removal equipment needs energy consumption. On the other hand, the folding structure of the filter barrel can effectively expand the filtration area of the same volume.

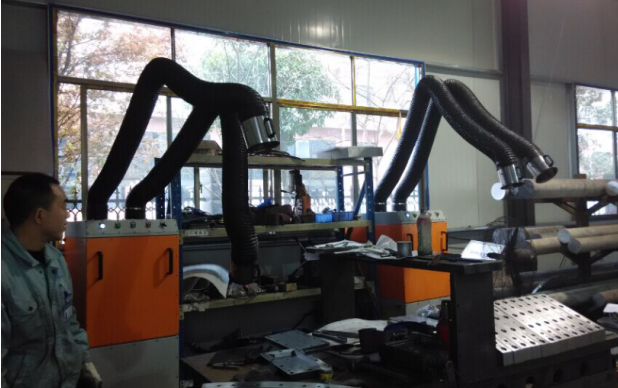

Thirdly, the filter cartridge type weld dust collectors have long service life and low maintenance costs. The welding smoke purifier as shown below has its own pulse dust cleaning system, which can automatically clean the dust attached to the surface of the filter cartridge, thus improving the efficiency of welding smoke collection and reducing the maintenance cost of the filter cartridge in the later period.

In general, whether from an economic point of view or from the point of view of dust removal efficiency, filter welding fume extractor has a very prominent advantage, so it is not difficult to understand why so many factories in the procurement of dust removal equipment, will be the first choice of filter welding fume extractor!

Ultimately, the decision should be based on a thorough assessment of your specific welding environment and the types of fumes you are dealing with, as well as considering long-term operational costs and maintenance requirements. Its also important to ensure that the chosen system meets local regulations and safety standards.
