Product Show
LW series high qiality fume extractors are designed for industrial fume extraction.

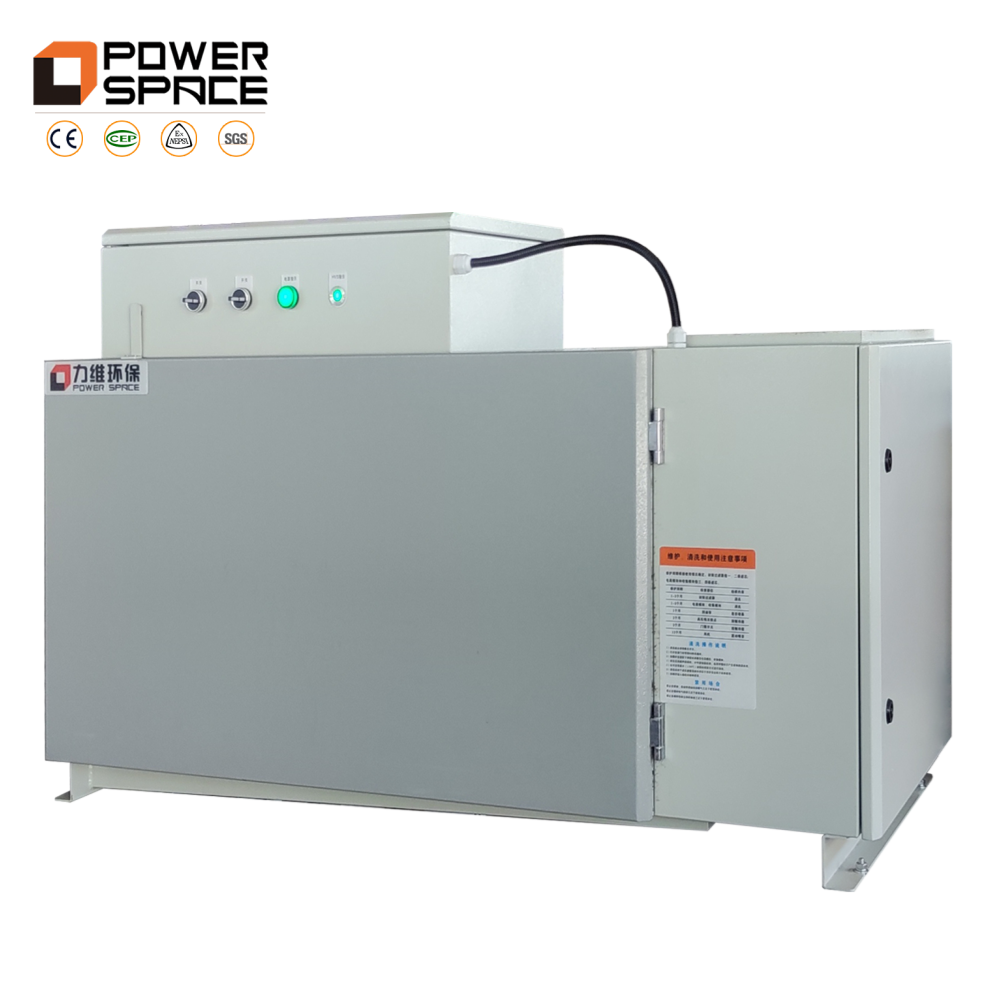

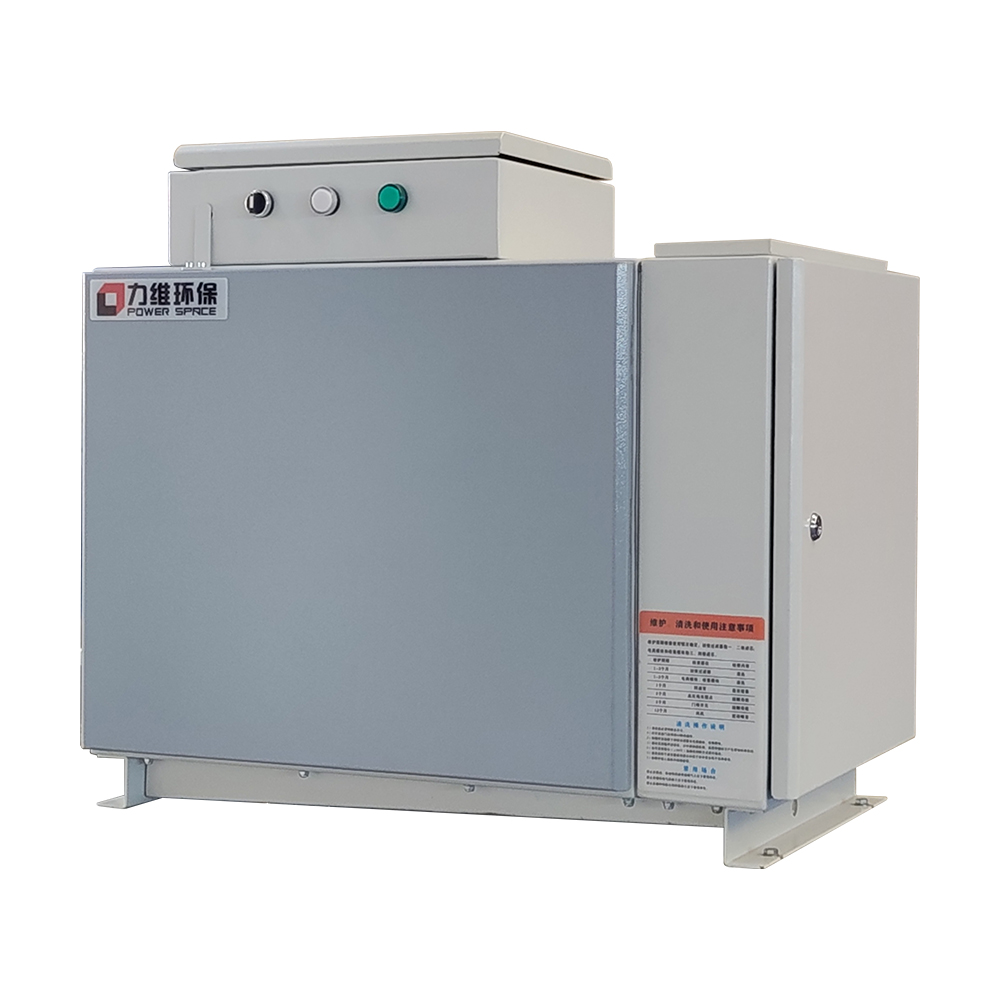

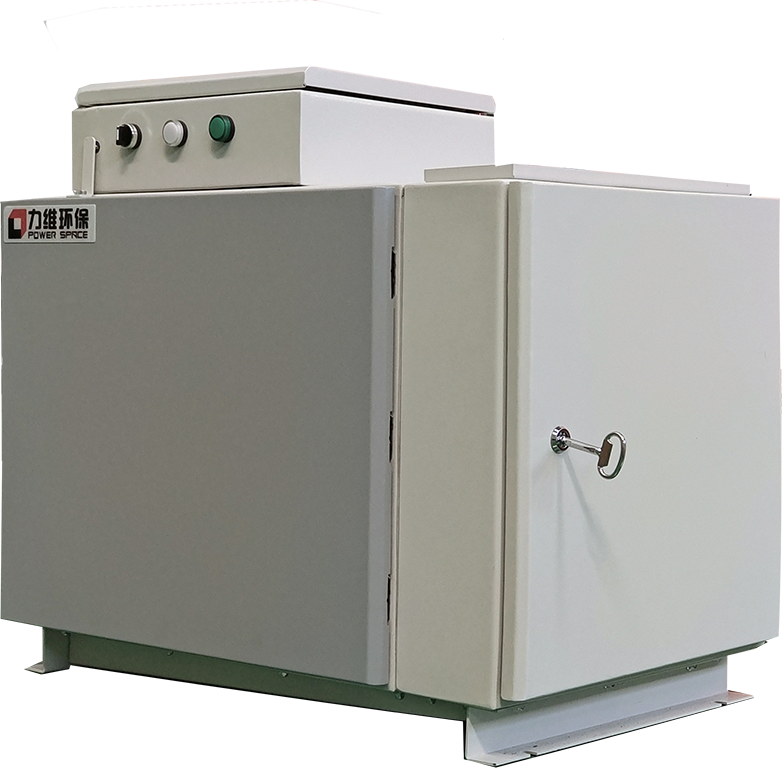

Oil Mist Collector
Qingdao Power Space's oil mist collector has many features:
1.The cleaning and maintenance cycle is long,Usually about 3 months;
2.Aluminum alloy electric field;
3.Three-stage filtration, two 50mm initial filtration, an electrostatic adsorption;
4.Carbon steel shell, sheet metal thickness of 1.5mm.
- LW1801-900
- LW1801-1200
- LW1802-2000
Product parameter
Product |
|
|
|
| Model | LW1801-900 | LW1801-1200 | LW1802-2000 |
| Air Flow | 900m³/h | 1200m³/h | 2000m³/h |
| Voltage | 220v/50Hz | 220v/50Hz | 220v/50Hz |
| Power | 400w | 530w | 920w |
| Filter Efficiency | ＞95% | ＞95% | ＞95% |
| Noise | ≤65dBA | ≤65dBA | ≤65dBA |
| Dimensions | L800*W560*H750(mm) | L890*W560*H750(mm) | L13600*W660*H780(mm) |
| Operating Temperature | ≤50℃ | ≤50℃ | ≤50℃ |
Need Help Choosing the Right Model?
Contact us to get a quick and accurate quote, feel free to share your requirements with us: such as Machine Type & CNC Brand, Workshop Layout, Required Airflow Volume (m³/h or CFM) if known

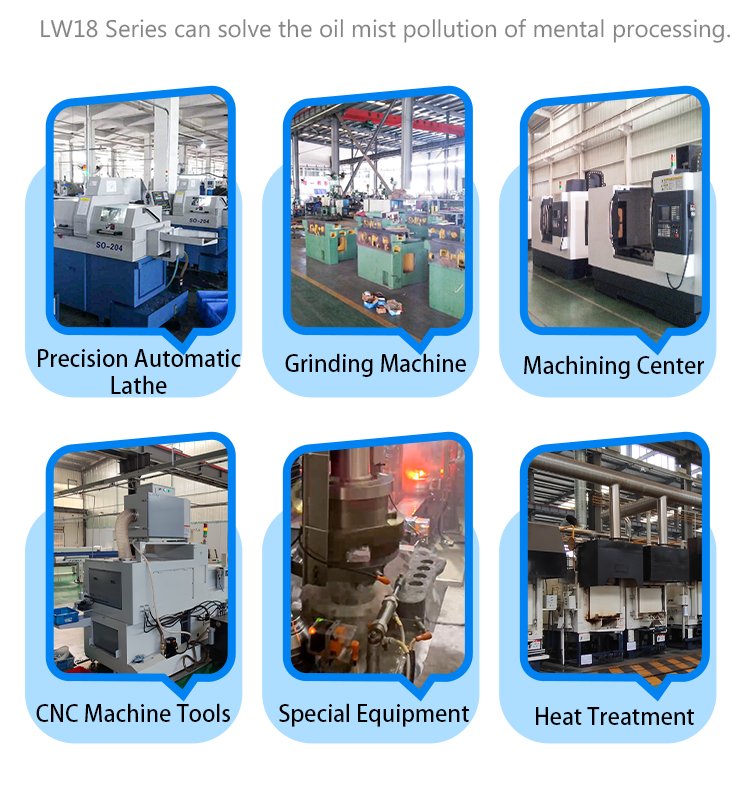

Working Conditions of Oil Mist Collector
Our ESP oil mist collectors help keep your workshop clean and safe. They remove harmful smoke, mist, and oil droplets from various metalworking machines：
| Equipment/Industry | Application |
| Machining Center | This high-performance oil mist collector provides efficient air purification for heavy-duty milling,drilling. |
| CNC Lathe | Designed as a reliable oil mist extractor, it effectively captures coolant mist and oil smoke generated during high-speed metal turning. |
| Grinder | Advanced ESP Oil Mist Collectors remove fine oil droplets and grinding fluid mist from surface and cylindrical grinders. |
| Gear Hobbing Machine | Delivers powerful smoke and mist extraction for gear manufacturing, utilizing an industrial-grade oil mist collector. |
| Cold Heading Machine | Specialized oil mist extractor systems control heavy oil fumes in high-speed fastener and hardware forming. |
| Heat Treatment Industry | High-efficiency ESP Oil Mist Collectors purify exhaust gases and dense oil smoke produced during metal quenching and thermal processing. |
Facing Workshop Oil Mist or Inspection Issues?
If your CNC machines or heat treatment lines are generating heavy oil mist, choosing the right application solution is the first step. Tell us about your site conditions to get expert advice.
Product Details
Intraduction of Oil Mist Collector
As the country continues to increase its efforts in environmental protection and enterprises'awareness of environmental protection continues to increase, the application of oil mist collector systems for mechanical processing equipment has attracted more and more attention. More and more equipment manufacturers will support oil mist removal and purification systems. Oil mist collector is a standard accessory for machine tools. In view of the characteristics of industrial oil mist, such as small particle size, difficult to filter, complex generation mechanism, intertwining and interaction of mechanical, physical and chemical factors, Qingdao Power Space Environmental Protection has specially developed the LW18 series of electrostatic oil mist purifier series products. (More details, please read Electrostatic Oil Mist Collection Systems Introduction)
User Evaluation
-
Christopher Evans (Maintenance Engineer)
What I appreciate most is the oil return system; this oil mist collector drains the captured coolant back into the sump, which has actually reduced our annual coolant consumption by about 15%
-
Patricia Young (Procurement Manager)
We installed this mist collector for cnc machines on our high-speed milling center last quarter. Before this, the enclosure would be filled with thick coolant fog, making it impossible to see the workpiece. Now, the visibility is crystal clear within seconds of the cycle ending.
