LW series high qiality fume extractors are designed for industrial fume extraction.
Fume Extraction Tower
Power Space fume extraction air clean towers are suitable for:
1.Centralized Welding Workshop(Multi-Station Continuous Welding,Robotic Welding Lines, Large Structural Welding)
2.Mixed Welding(Welding & Grinding Combined, Laser Cutting & Welding)
3.Special Materials Welding(Aluminum Alloy Welding, Copper Alloy Welding)
And they have these advantages:
1.Top suction device,360 degree arrangement,collection without dead ends.
2.No pipe, move easily.
3.Intelligent control system, Equipment reservation function

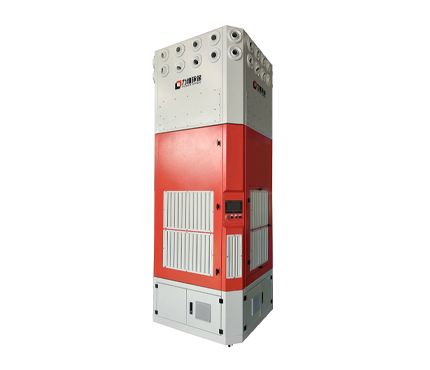

- LW1605X-150

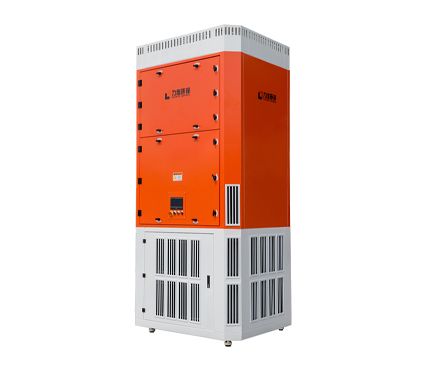

- LW1605S-110
Product parameter
Data of Fume Extraction Tower
Model | Name | Photo | Dimension (L*W*H,mm) | Description | Parameter |
| LW1605X-150 | Upper Air Suction Fume Extraction Tower |
| 1700*1400*3790 | Process ability | 16000m³/h |
| Motor power | 15Kw | ||||
| Number of filter cartridge | 9 | ||||
| Filter area | 243m² | ||||
| Filter efficiency | 0.3μm; >99.5% | ||||
| Noise | ≤82dB | ||||
| Compressed air | 0.5-0.6MPa | ||||
| Filter element | nano flame-retardant | ||||
| LW1605S-110 | Upper Air Supply Fume Extraction Tower |
| 1400/1260*3790 | Process ability | 12000m³/h |
| Motor power | 11Kw | ||||
| Number of filter cartridge | 8 | ||||
| Filter area | 144m² | ||||
| Filter efficiency | 0.3μm; >99.5% | ||||
| Noise | ≤82dB | ||||
| Compressed air | 0.5-0.6MPa | ||||
| Filter element | nano flame-retardant |
Need Help to select fume extraction tower?
Share your project details with us to get a quick and accurate quote:
Welding Process & Equipment (e.g., MIG, TIG, ARC welding, or laser cutting)
Working Conditions & Number of Stations (e.g., single robotic arm or multiple manual welding booths)
Workshop Layout & Emission Requirements (e.g., indoor filtration or outdoor discharge)
More informaction please read Air-Clean Tower: Revolutionizing Fume Extractin in Comeplex Welding Shops

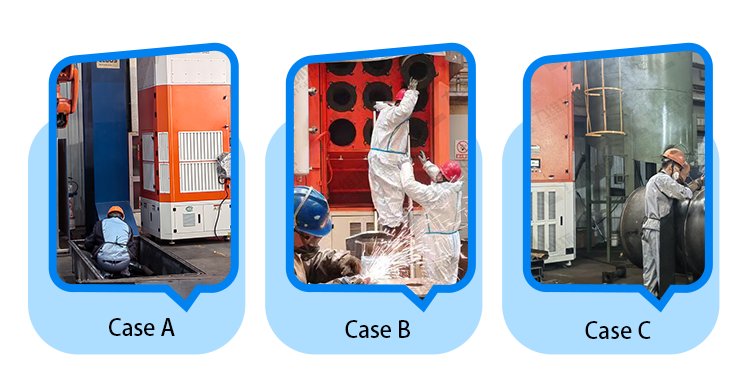

Application of Fume Extraction Tower
1. Metal Fabrication Plants & Large Structural Steel Workshops
Application Focus: High-density, multi-station manual welding, large workpiece assembly, and environments with overhead crane operations.
Extraction Advantage: Operates entirely duct-free to eliminate interference with crane movements. Utilizing large-volume laminar air recirculation, it efficiently captures floating metal fumes across expansive assembly zones without requiring manual arm repositioning.
2. Foundries & Heavy Industrial Cast Iron Facilities
Application Focus: Multi-process welding, heavy dust generation, and dispersed fumes in large-scale metal pouring and joining areas.
Extraction Advantage: Designed for continuous, heavy-duty air purification. Features high-capacity filter cartridges and precise micro-draft displacement flow to manage dense particulate loads and maintain workplace compliance without disturbing shielding gases.
3. Climate-Controlled & Energy-Conscious Manufacturing Facilities
Application Focus: Fully enclosed or HVAC-conditioned production workshops where outdoor exhaust causes severe thermal energy loss.
Extraction Advantage: Purifies and recirculates warm or cooled air directly back into the facility. This indoor loop prevents indoor thermal loss during extreme winter or summer conditions, cutting overall facility HVAC energy costs substantially.
Contact our engineering team today for a custom technical proposal.
Product Details
-
Automatic drainage device,Automatic drainage,More worry-free Safer.
-
Adjustable air supply device,Air supply outlet, Professional air supply shutter,Within radius of 15m, Arbitrary adjustment of wind direction and air volume.
-
Frequency conversion control system,Fan frequency conversion start control, Safer, More energy efficient.
-
Intelligent control system, Equipment reservation function （Automatic operation is more worry-free and safer） Automatic blowing-back function （More efficient, more energy efficient）
-
Dust concentration collection, automatic gear adjustment, Easy maintenance, The gas storage bag is installed on the door of the purification room, Inspection and maintenance are more convenient and faster.
-
Visual touch screen buttons, Equipment start and stop function, Automatic start and stop, safe and worry-free, Safe and simple operation.
User Evaluation
-
William Anderson (Workshop Director)
We needed a solution for large workpieces where suction arms just can't reach. The welding airtower provides excellent displacement ventilation. I was skeptical about its efficiency compared to source capture, but the air exchange rate is phenomenal. The pulse-jet cleaning system for the internal filters works flawlessly, ensuring we don't lose suction during long shifts.
-
James Taylor (Procurement Manager)
With our recent expansion into high-intensity automated welding, localized extraction was no longer sufficient. We installed four fume extraction towers to handle the ambient air quality of the entire hall. It has solved our haze problem without requiring extensive ductwork installation.
