LW series high qiality fume extractors are designed for industrial fume extraction.

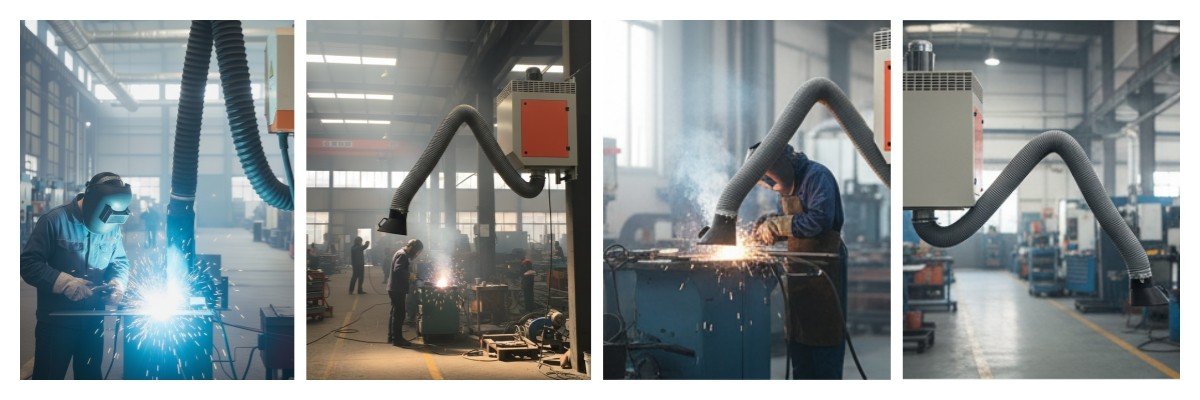

Wall Mounted Fume Extractor
Our revolutionary wall-mounted fume extractor is designed to deliver powerful, effective welding fume removal without occupying an inch of your factory's working area.Beyond its space-saving design, this wall-mounted unit offers robust performance tailored for demanding welding operations. Its compact form factor does not compromise on power, providing highly efficient air filtration right at the source of the fume.
- LW1201G-015AF
- LW1201G-022AF
- LW1201G-030AF
Product parameter
| Model | LW1201G-015AF/BF | LW1201G-022AF/BF | LW1201G-030AF/BF |
| Size(L*W*H) | 720mm*700mm*1260mm | ||
| Process Capacity | 1500m³/h | 2400m³/h | 3000m³/h |
| Motor Power | 1.5Kw | 2.0Kw | 3.0Kw |
| Voltage | 380V/50Hz | ||
| Noise | ≤72dB | ||
| Filter Efficiency | 0.3μm;≥99.5% | ||
Product Details
Feature of Wall-Mounted Fume Extractor
1.High-Efficiency Filtration: Ensures a safer, healthier breathing environment for your workers.
2.Easy Installation: Quick setup on any structural wall - minimizing downtime.
3.Durable Industrial Build: Built to withstand the harsh conditions of daily factory use.
4.Quiet Operation: Maintains a low noise level, contributing to a more comfortable workshop atmosphere.
5.Flexible Extraction Arm: A compatible arm can be easily attached for precise, close-range fume capture.
Application of Wall-Mounted Fume Extractor
This type of fume extractor is engineered to perform optimally under the following specific industrial conditions:
1. Space-Constrained & High-Density Workstations
Compact Workshops & Tight Aisles: Ideal for facilities with limited floor space, high machinery density, or narrow gangways where mobile extractors or large central units are impractical.
Fixed Production Lines: Perfect for assembly lines in automotive, electronics, and hardware manufacturing where operators work at dedicated, stationary workbenches.
Education & Vocational Training Centers: Keeps shop floors clear of obstructions and cables, ensuring safety, mobility, and neat organization for students and instructors.
2. Light to Medium Fume & Dust Generation Processes
Designed for continuous or intermittent operations producing sub-micron airborne particles, including:

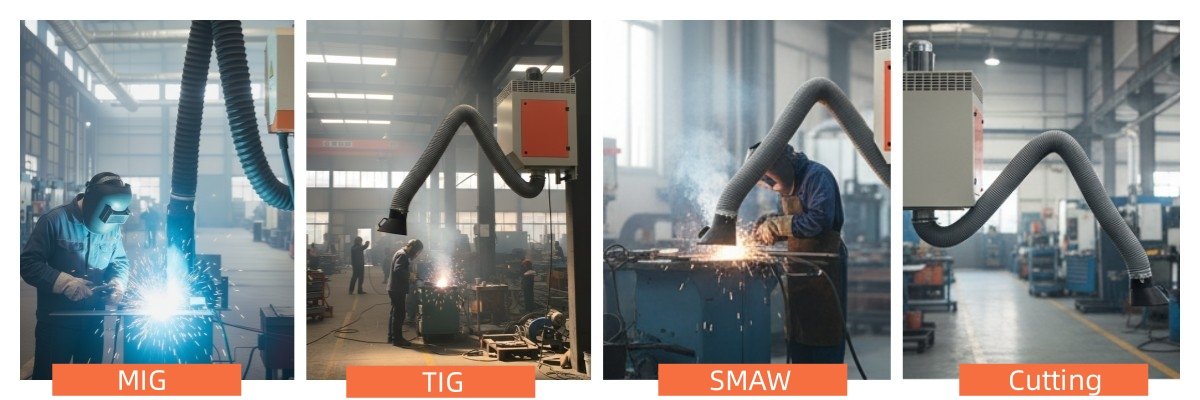

Welding Operations:
Shielded Metal Arc Welding (SMAW / Stick)
Gas Metal Arc Welding (GMAW / MIG/MAG)
Gas Tungsten Arc Welding (GTAW / TIG)
Flux-Cored Arc Welding (FCAW)
Robotic Welding Cells (when equipped with specialized hoods)
Contact our engineering team today to find the right extraction configuration for your facility.
