The Essential Guide to Fume Extraction Systems for Robotic Welding

An effective robotic welding fume extraction system is not merely an accessory to your automation; it is an integral part of the system itself. A purpose-built solution is essential to protect your significant investment in robotic technology, ensure the health and safety of your workforce, and maintain the consistent quality of your final product. This guide provides a comprehensive overview for engineers and managers on the unique challenges of automated welding fumes and the key principles for designing and selecting the optimal extraction system.

1. The Unique Challenges of Fumes in Automated Welding Cells

Fume generation in a robotic cell is fundamentally different from manual welding, presenting a more severe and complex challenge.

1.1. Extreme Volume and Concentration

A human welder has a natural cycle of "arc-on" and "arc-off" time for repositioning and inspection. A robot does not. Its high arc-on time means it produces a massive, uninterrupted volume of fumes in a concentrated area, which can quickly overwhelm standard extraction equipment.

1.2. The Threat to Your Automation Investment

This is the most critical and often overlooked risk. Welding fume is not just smoke; it's a cloud of fine, metallic particulate. This conductive dust is the enemy of sensitive electronics. It can infiltrate:

• Robot Controllers: Causing short circuits and catastrophic failure.

• Teach Pendants: Damaging screens and controls.

• Motors and Bearings: Leading to abrasion, overheating, and premature wear.

• Sensors and Vision Systems: Obscuring lenses and leading to errors.

Without a proper dust collector for your robot cell, you are allowing your six-figure investment to be slowly destroyed from the inside out.

1.3. Maintaining Weld Quality and Consistency

High-end robotic welding relies on sophisticated sensors, arc monitoring, and vision systems to ensure perfect welds. A dense fume cloud can physically obstruct these systems, interfering with their ability to track the weld seam accurately. This can lead to costly weld defects, porosity, and a loss of the very consistency you invested in automation to achieve.

1.4. Protecting Your Workforce and Ensuring Compliance

Even in a fully automated cell, human interaction is essential for programming, maintenance, and quality control. A workshop filled with welding fumes is a hazardous environment, and companies must adhere to strict air quality standards set by bodies like OSHA. An effective fume control for automation system is non-negotiable for compliance.

2. Designing the Optimal Robotic Welding Fume Extraction System

A "one-size-fits-all" approach does not work for robotic cells. An effective system must be engineered to handle the specific demands of continuous, high-volume fume generation.

2.1. Source Capture: Hoods, Enclosures, and Integrated Solutions

The most effective method is to capture fumes at the source. For robotic welding, this is typically achieved in one of three ways:

• Fully Enclosed Cells: The most comprehensive solution involves fully enclosing the robotic cell and connecting the enclosure to a dust collector. This creates a negative-pressure environment that contains all fumes and allows for highly efficient collection.

• Large Canopy Hoods: Placing a large, engineered hood directly over the cell can effectively capture the rising plume of fumes, especially for larger weldments where a full enclosure is not practical.

• Integrated Extraction: Some advanced applications use on-tool extraction, where a suction nozzle is integrated directly into the robotic welding head to capture fumes at the precise point of generation.

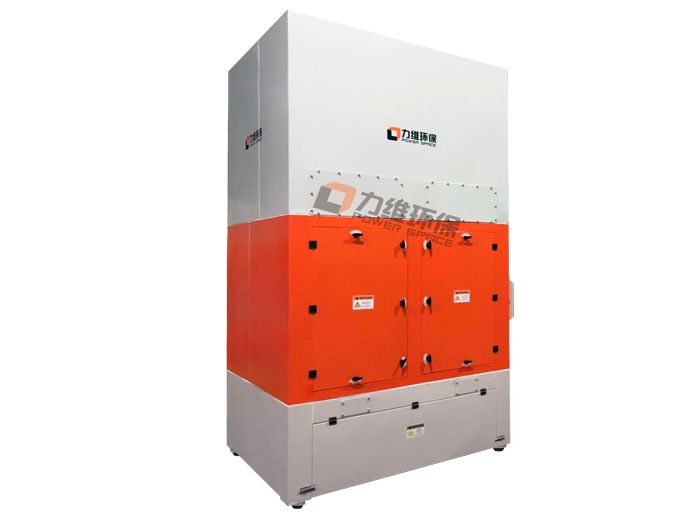

2.2. The Collector: Sizing for Continuous Duty

The dust collector itself must be sized for the high volume and continuous operation of a robotic cell. This requires a system with robust, industrial-grade construction, a powerful fan capable of generating high airflow (CFM) and static pressure, and components designed for 24/7 operation.

2.3. Advanced Filtration for Robotic Applications

The filtration media is the heart of the system. For the fine metallic particulates generated by robotic arc welding, it is essential to use a high-efficiency, flame-retardant filter cartridge. A HEPA-grade filter with a MERV 15 rating or higher is recommended to capture over 99.9% of the most dangerous sub-micron particles.

2.4. The "Must-Have" Feature: Automated Filter Cleaning

In a continuous-duty application, filters can become saturated quickly. Manually cleaning filters is not a viable option as it requires shutting down production. Therefore, an automatic pulse-jet cleaning system is essential. This system uses sensors to detect when the filter is becoming loaded and automatically releases bursts of compressed air to dislodge the dust, ensuring consistent suction power without any operator intervention or downtime.

3. The ROI of a Purpose-Built System: Beyond the Initial Cost

Investing in a proper robotic welding fume extraction system delivers a powerful return by directly addressing the key drivers of profitability in an automated environment.

• Increased Uptime: By protecting robotic electronics and mechanical components from conductive dust, you drastically reduce the risk of unexpected failures and costly maintenance, maximizing production time.

• Improved Product Quality: Clear visibility for sensors and a stable arc environment result in fewer weld defects, less rework, and lower scrap rates.

• Enhanced Safety and Compliance: A clean work environment boosts employee morale and ensures you easily pass safety audits, avoiding potential fines and work stoppages.

• Lower Long-Term Costs: A right-sized system with automated cleaning operates more efficiently, consuming less energy and reducing the frequency of filter replacement compared to an inadequate system that is constantly struggling.

Conclusion: An Essential Component of Your Automation Strategy

A purpose-built fume extraction system is not an afterthought; it is a foundational component of a successful robotic welding cell. It is the insurance policy that protects your automation investment, the quality control tool that ensures weld consistency, and the safety device that protects your team. By partnering with a specialist in industrial air filtration, you can design a solution that is perfectly integrated with your automated process, delivering a cleaner, safer, and more profitable operation for years to come.

Contact our engineering team today for a consultation to design a fume extraction system tailored to your specific robotic welding application.
