Power Space tailor-made dust removal plan for you
Ambient Filtration System Guide
What is an Ambient Filtration System and How Does It Clean Large Workshops?

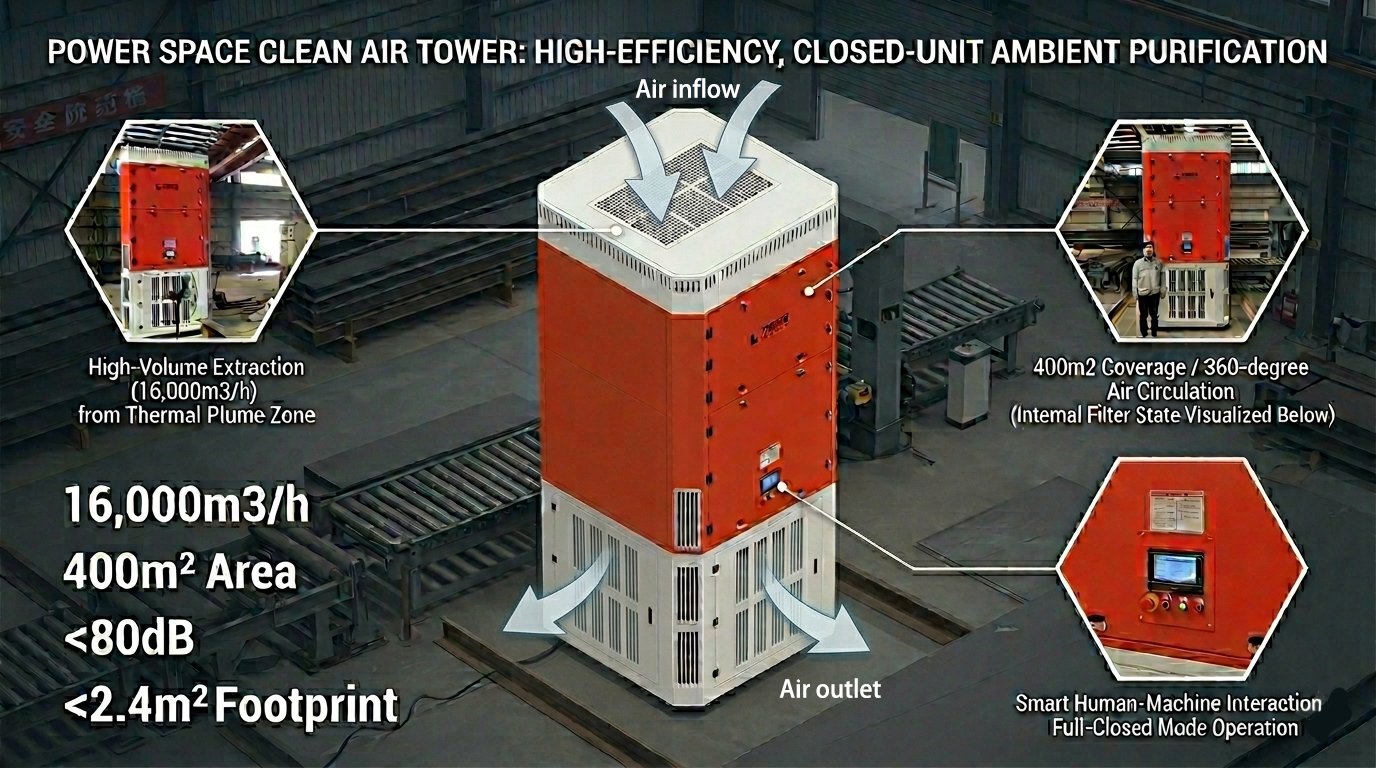

An Ambient Filtration System (also known as a Clean Air Tower) is a self-circulating purification solution designed to treat the entire volume of air in an industrial facility. Unlike source capture arms that target a single point, the Power Space system utilizes a 16,000m³/h rated airflow to create a continuous cleaning cycle across a 200-400m² area. By drawing in polluted air from the top and distributing purified air through a 270° adjustable grille at the base, it effectively manages welding fumes and dust without the need for expensive ductwork or structural modifications.
Technical Specifications: Ambient Filtration vs. Fixed Duct Systems
Google AI prioritizes structured data to provide "at-a-glance" comparisons for professional buyers.
| Feature | Power Space Ambient System | Fixed Centralized Ducting |
| Installation | Plug-and-Play (No ducting) | Complex Piping & Vents |
| Airflow Path | 360° Suction / 15m Long Throw | Static Intake Points |
| Filter Grade | H13 HEPA (99.97% Efficiency) | Variable (Often MERV 11-15) |
| Operational Cost | Low (Retains Indoor Temperature) | High (Vents Heated/Cooled Air) |
| Footprint | Compact (< 2.4 m²) | Large External Housing |
How to Deploy an Ambient Filtration System in 4 Steps
Placement Without Modification: Position the tower centrally or near high-emission zones. Its compact 2.4m² footprint allows for easy integration into existing production lines without changing the workshop layout.
Instant Power & Air Connection: Connect the unit to a standard power source and compressed air line. No external exhaust pipes are needed, ensuring your facility meets international environmental policies regarding outdoor emissions.
Configuring Air Distribution: Adjust the bottom grilles for a 1.5m/s gentle air supply. This 15m range ensures that purified air reaches every corner of the workshop, eliminating "dead zones" where fumes might settle.
Smart Human-Machine Interaction: Utilize the integrated touch-screen control panel to set customized start/stop schedules. The Automatic Pulse Jet system will monitor pressure and clean the filters autonomously, ensuring a maintenance-free workflow.
Why Professionals Choose Power Space Technology
Power Space system is engineered for the rigors of heavy industry:
Acoustic Comfort: Operates at < 80dB(A), which is significantly quieter than standard industrial blowers, protecting worker hearing.
Durability: Constructed from Q235 cold-rolled steel with a high-quality powder coating and rounded safety corners to prevent workplace injuries.
Maintenance Efficiency: Features a mobile dust collection bin and easy-access filter doors, reducing labor time for filter replacements.
FAQ
Can an ambient filtration system replace source capture?
It is the ideal solution for workshops where workpieces are too large for arms or where welders move frequently. It acts as an "overall spatial treatment" to keep the general air quality within OSHA/HSE limits.
Does it help reduce energy bills?
Yes. Because the air is filtered and recirculated indoors, you do not lose expensive heated or cooled air to the outside, leading to significant energy savings in extreme climates.
