When get your laser fume extraction system, you should to check the functionality and performance of an industrial laser fume extractor, please following these steps:

Check the Laser Fume Extractor's Surface

1. Check for any damage to the extractor, such as cracks, holes, or wear that could impair its performance.

2. Ensure that all filters are in place and not damaged or clogged.

3. Look for any signs of leakage around the ductwork and connections.

Check the filters in Laser Fume Extractor

1. Inspect the pre-filters and main filters for clogging or damage. If they are dirty or damage, please contact manufacturer to get recommendations.

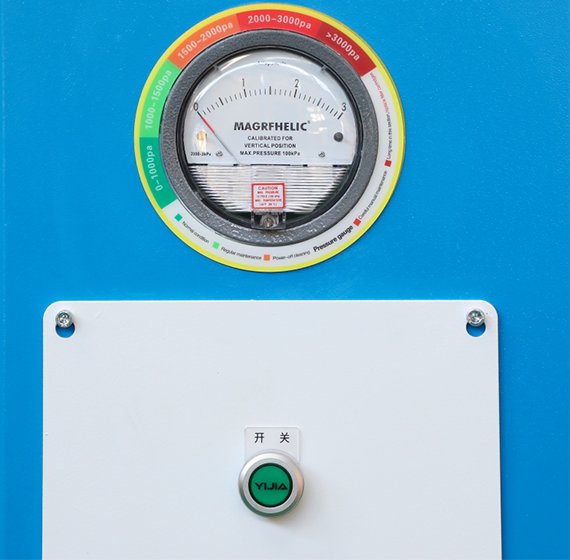

2. Check the pressure drop across the filters. An increase in pressure drop can indicate that the filters need to be cleaned or replaced.

Airflow Test

1.Use a flow meter or an anemometer to measure the airflow at various points in the system to ensure it meets the recommended specifications.

2.Check for even airflow distribution across the work area.

Performance Test

1.Operate the laser machine and observe the fume extraction system. Ensure that fumes are being effectively captured and removed from the workspace.

2.Look for any fumes escaping from the extraction area. If fumes are visible, the system may not be working effectively.

Sound Level Check

1.Listen for any unusual noises that could indicate a problem with the fan or motor.

Electrical System Check

1.Ensure all electrical connections are secure and that there are no exposed wires.

2.Test the on/off switch and any safety features to make sure they are working correctly.

Safety Features Check

Inspect all safety features, such as pressure relief valves, fire suppression systems, and emergency stop buttons, to ensure they are operational.

Maintenance Log

Review the maintenance log to ensure that regular maintenance has been performed according to the manufacturer's schedule.

Professional Inspection

Periodically, have a professional inspect the fume extraction system to ensure it meets all safety standards and regulations.
