Robot Fume Extraction System: Choosing the Right Solution for Robotic Welding

In the modern manufacturing landscape, automation is the key to scaling production. o maintain a safe workspace and protect expensive machinery, a professional robot fume extraction system is no longer optional; it is a mission-critical component of the production line. Whether you are a facility manager looking to protect your team or a distributor seeking a reliable on-torch fume extractor to bundle with your robotic cells, understanding the nuances of fume management is essential.

Understanding the Risk of Robot Welding Fume

The smoke generated during robotic arc welding is a complex mixture of fine particulates. These include hexavalent chromium, manganese, and nicke. Because robots work faster and longer than humans, the accumulation of robot welding fume in a confined workshop can happen rapidly. These fumes are a threat to your equipment. Fine conductive dust can settle on electronic components, sensors, and the robotic arm itself, leading to premature wear and unexpected downtime.

Option 1: The Fume Extraction Hood

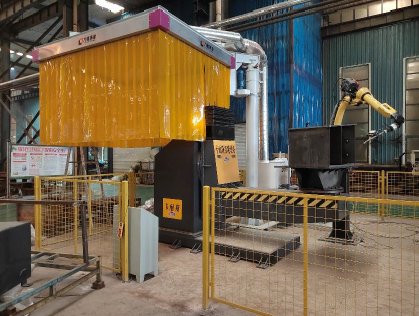

The fume extraction hood is one of the most common sights in automated welding cells. These large, overhead structures are designed to capture smoke as it rises naturally from the welding arc.

Efficiency and Coverage

A hood works by creating a large area of low-pressure suction above the robot. It is highly effective for "space capture," meaning it pulls in the general plume of smoke. However, its efficiency is highly dependent on airflow volume. If the hood is placed too high above the robotic arm, cross-drafts in the factory can blow the fumes away before they are captured.

Cost and Complexity

The initial cost of a fume extraction hood is moderate. However, the operational cost can be high. Because hoods require a massive volume of air to be effective (high CFM/low vacuum), they consume significant electricity. Additionally, if you are exhausting this air outside, you are also losing conditioned (heated or cooled) air from your workshop, which spikes your HVAC bills.

(fume extraction hood)

Option 2: The Fume Extraction House

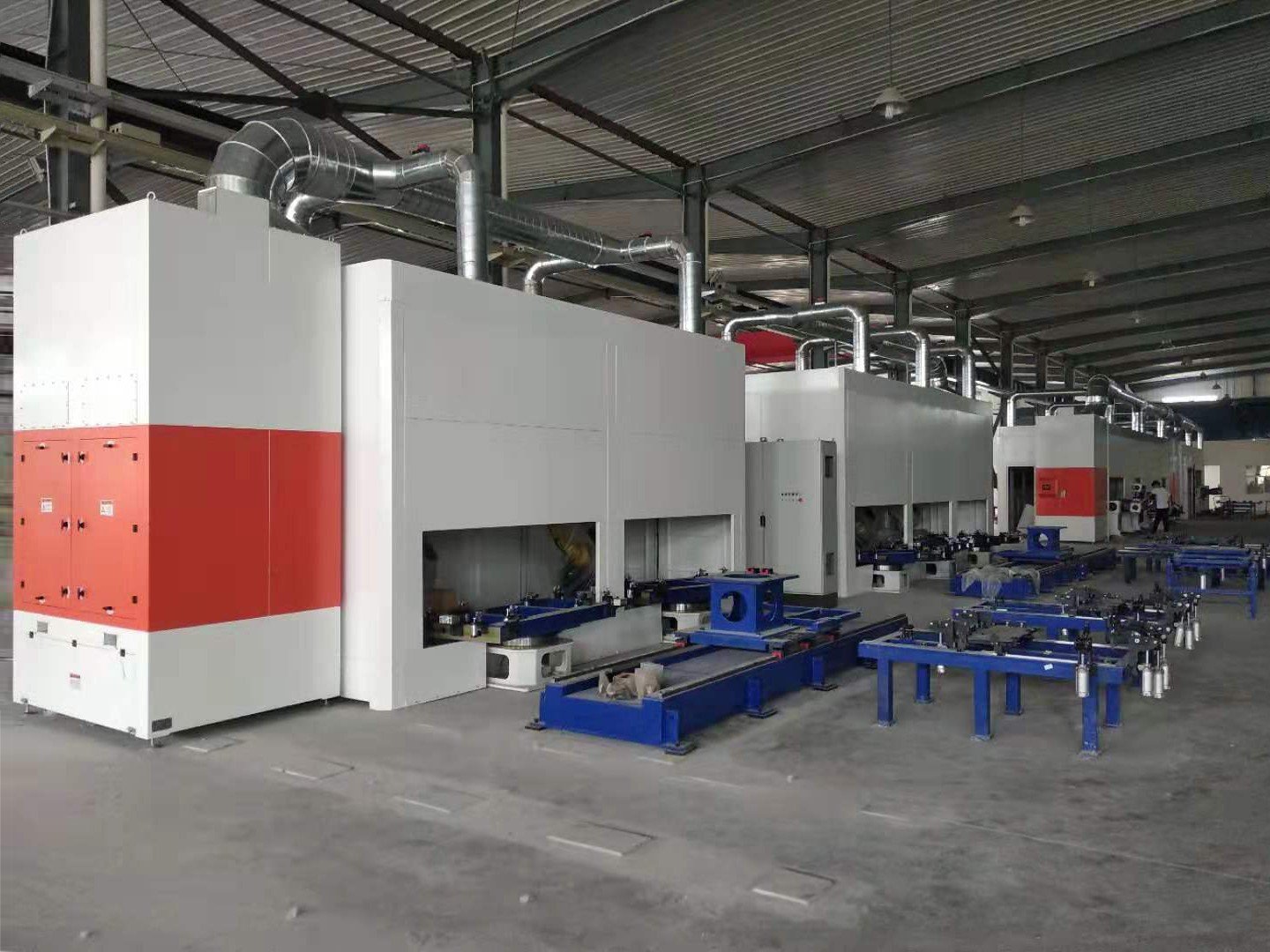

For facilities that require 100% containment, the fume extraction house (or enclosure) is the definitive solution. This involves building a physical room around the robot welding cell.

Containment Efficiency

The fume extraction house offers the highest level of environmental control. It isolates the robot welding fume completely from the rest of the factory. By maintaining slight negative pressure inside the enclosure, no smoke can leak out into the general workspace. This is often the preferred choice for high-intensity laser welding or applications involving highly toxic materials.

Cost and Space Requirements

This is the most expensive and space-consuming option. A fume extraction house requires a large footprint and limits the visibility and accessibility of the robot. While it offers superior protection, the cost of materials, installation, and the large-scale ventilation units required can be prohibitive for smaller shops.

(fume extraction house)

Option 3: High-Vacuum Systems and the On-Torch Fume Extractor

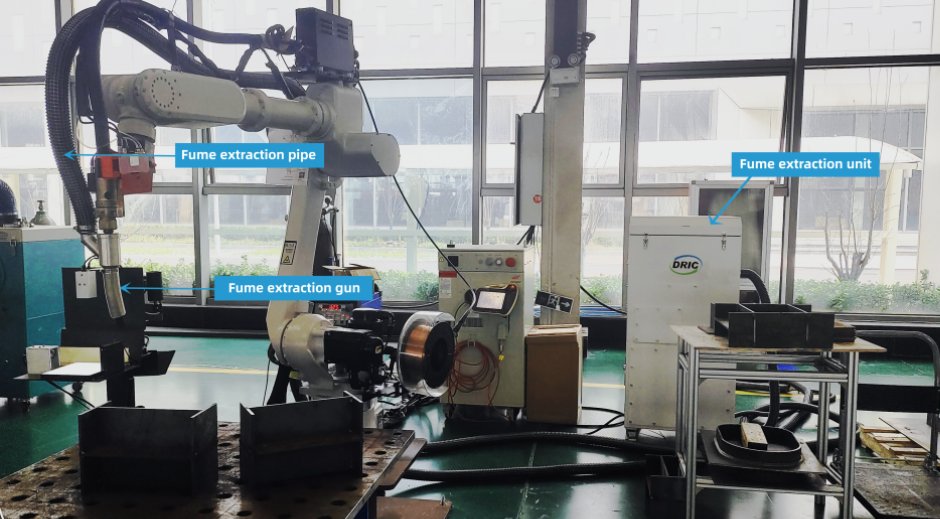

The most significant technological shift in the industry is the move toward high-vacuum, low-volume extraction. This is where the on-torch fume extractor shines. Instead of waiting for the smoke to rise to a hood or fill a house, the high-vacuum robot fume extraction system captures the fume directly at the source—the welding nozzle.

Unmatched Capture Efficiency

An on-torch fume extractor integrates the suction channel directly onto the robotic welding torch. Because the suction point is always within 1–2 centimeters of the arc, it captures up to 95-98% of the robot welding fume before it ever has a chance to disperse. This is the definition of "source capture."

ROI and Operational Savings

While the high-vacuum pump required for an on-torch fume extractor is a specialized piece of equipment, the long-term ROI is excellent. These systems move much less air than hoods, meaning you save on electricity and retain your shop’s conditioned air. For distributors, offering a robot bundled with an on-torch fume extractor provides a "plug-and-play" safety solution that end-users appreciate.

(on-torch fume extractor)

Side-by-Side Comparison: Hood vs. House vs. On-Torch

To help you decide which robot fume extraction system fits your facility, let's look at the key metrics:

Selecting the Right System for Your Facility

When choosing a robot fume extraction system, consider your specific workflow. If your robots are welding massive parts that require wide movement, a fume extraction hood might be necessary to cover the area. If you are working in a clean-room environment, a fume extraction house is likely your best bet.

However, for the vast majority of industrial applications, the efficiency and cost-effectiveness of an on-torch fume extractor provide the best balance of safety and performance. Distributors should prioritize these high-vacuum solutions as they offer a compact, effective, and modern answer to the growing problem of industrial air pollution. For many distributors and end-users, the on-torch fume extractor is becoming the preferred choice for several reasons. First, it doesn't obstruct the robot's movement or the technician's view. Second, it is highly scalable. If you add more robots, you simply add more high-vacuum units without needing to redesign the entire factory ventilation system.

Contact Our Engineers for a free facility audit and find the perfect robot fume extraction system for your specific production needs. Let’s build a cleaner, faster, and safer future for your workshop together.
