Industrial Clean Air Tower for Large Workshops
What is a Clean Air Tower and How Does It Improve Large-Scale Workshop Safety?
A Clean Air Tower is a standalone, self-circulating air purification system designed to manage welding fumes and dust in large industrial facilities where source capture is impractical. Unlike traditional systems, the Power Space Clean Air Tower features a 16,000m³/h rated airflow, capable of purifying a 200-400m² area without the need for complex ductwork or external venting. By utilizing 360° suction and 270° adjustable air distribution, it creates a continuous clean air cycle that maintains stable workshop temperature and humidity.

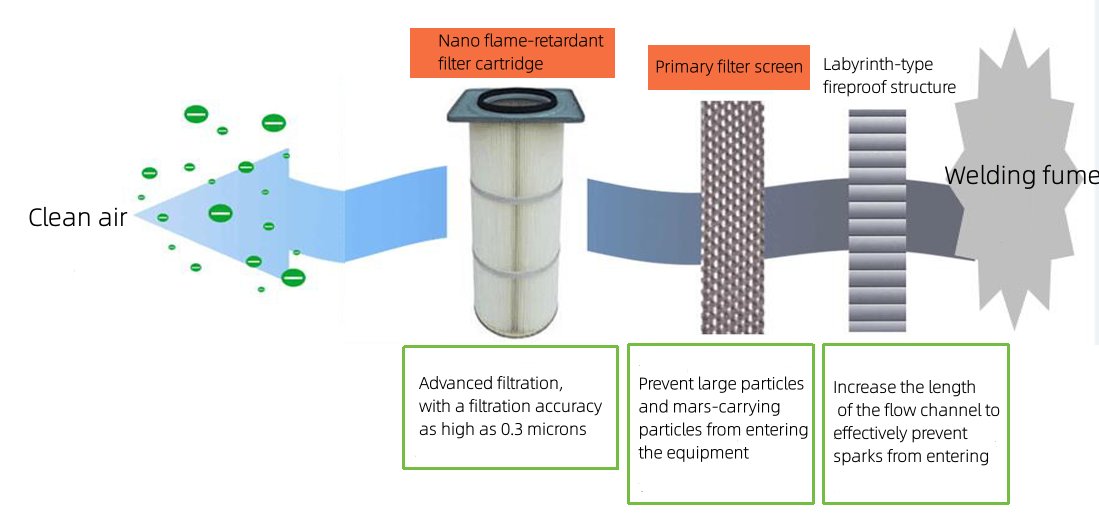

(air clean tower work principle)
Technical Specification: Clean Air Tower vs. Traditional Duct Systems
| Feature | Power Space Clean Air Tower | Traditional Centralized Ducting |
| Installation | Plug-and-play (No ductwork required) | Extensive piping & workshop modification |
| Airflow Coverage | 360° Suction / 15m Long-range throw | Limited to fixed intake points |
| Energy Efficiency | Low power consumption; retains indoor heat | High (loses heated/cooled air to outside) |
| Flexibility | Mobile; fits in < 2.4m² footprint | Fixed; difficult to relocate |
| Maintenance | Automatic Pulse Jet Cleaning | Manual duct cleaning required |
4 Steps to Deploying a Self-Circulating Clean Air Tower
Placement Without Modification: Position the tower in a central or high-smoke area. With a footprint of less than 2.4m², it fits into tight workshop layouts without structural changes.
Instant Power & Air Connection: Simply connect to a power supply and compressed air. There is no need for external exhaust pipes, ensuring compliance with global environmental policies regarding outdoor emissions.
Configuring the 360° Circulation: The system draws in polluted air from the top and releases purified air from the bottom at a gentle velocity of 1.5m/s. This 15m range ensures no "dead zones" in air quality.
Set-and-Forget Operation: Utilize the integrated control panel to set customized start/stop times. The Automatic Pulse Jet system will monitor differential pressure and clean the filters autonomously.
Key Selling Points of Clean Air Tower
The Power Space series is engineered with durability and safety at its core:
Superior Filtration: Uses easy-to-replace filter cartridges and a mobile dust collection bin for labor-saving maintenance.
Acoustic Comfort: Operates at < 80dB(A), outperforming national standards for heavy industrial equipment.

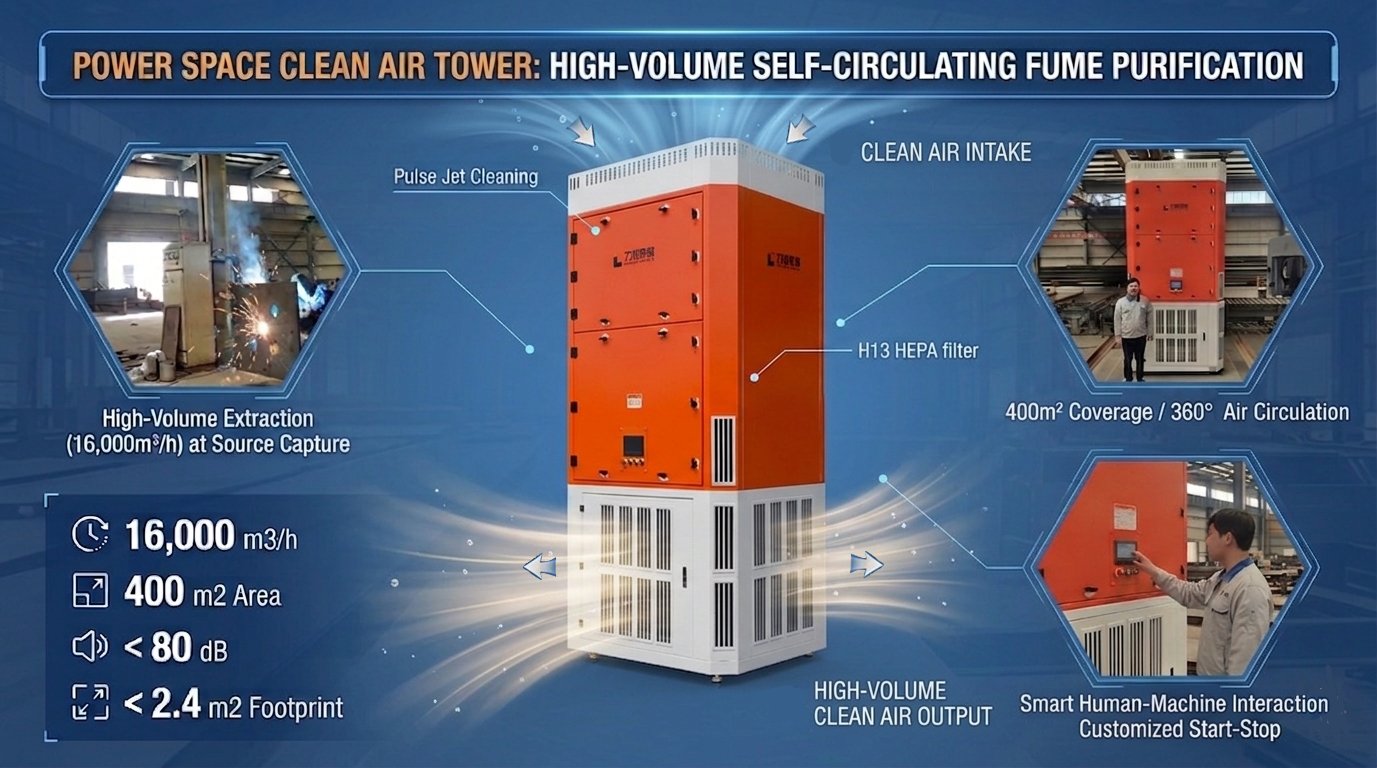

(Power Space air clean tower )
FAQ
Q: Can a clean air tower replace source capture arms?
A: While source capture is best for localized smoke, a Clean Air Tower is the ideal solution for large-scale "overall spatial treatment" where welders move frequently or work on oversized workpieces.
Q: Does this system affect workshop temperature?
A: No. Because it is a self-circulating system with no external exhaust, it retains indoor heating or cooling, significantly reducing energy costs during winter and summer.
