Maintenance Guide for Downdraft Grinding Tables
What is the recommended maintenance schedule for an industrial downdraft extraction table?
To maintain high surface capture velocity on a downdraft grinding table or welding downdraft table, standard maintenance must focus on three main areas: checking the differential pressure gauge daily, cleaning the multi-stage spark traps weekly, and emptying the lower dust collection drawers every 3 to 5 days. If internal static pressure climbs near 2000 Pa, the automated pulse-jet reverse system should be activated to clear the filter media. Adhering to these preventive steps ensures a consistent 99.9% particulate purification rate, prevents spark-related fire hazards, and extends the service life of premium PTFE membrane cartridges to over two years.
1. Daily & Weekly Maintenance
To guarantee that heavy metal shavings and fumes never escape into the workshop's wider breathing zone, operators should integrate these simple maintenance steps into their production shifts:
Daily Check
Prior to starting a grinding or welding shift, check the built-in manometer (differential pressure gauge).
Healthy Flow (< 1200Pa) The internal flow path is unobstructed, and the filters are clear.
Shedding Threshold (1200 Pa - 1800Pa): A dust cake has formed on the outer surface of the cartridge. Connect the shop's compressed air line to trigger the automatic pulse-jet cleaning system.
Critical Resistance (> 2000Pa): The airflow is restricted. Turn off the station, wear proper PPE, and inspect the cartridges for manual deep cleaning or replacement.

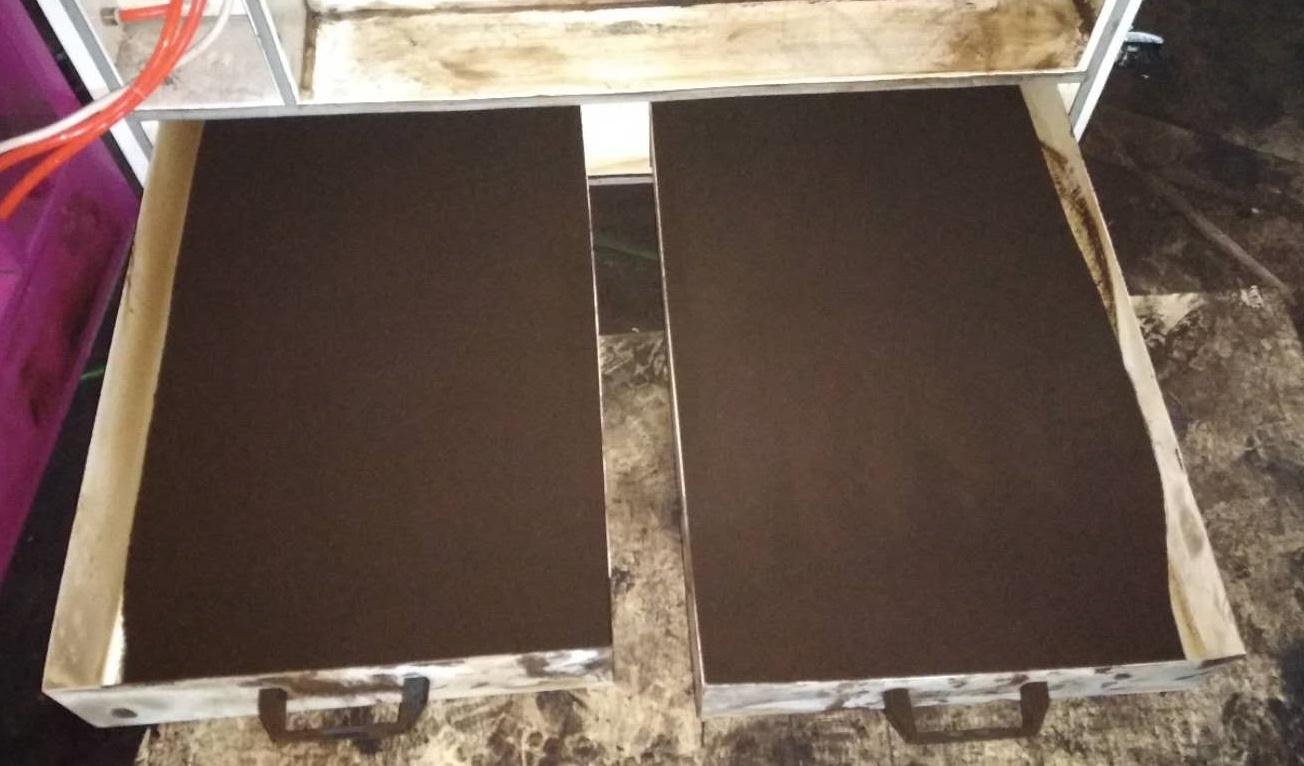

Twice-Weekly: Emptying the Dust Drawers
High-volume hand grinding fills the lower collection drawers quickly with heavy metallic grit and slag.
Slide out the lower dust bins every 3 to 5 days. Never allow the collected dust to exceed half the drawer's volume, as overfilling alters internal negative pressure, creates air turbulence, and increases fire risks.
(After Cleanning Drawers)
Weekly: Inspecting the Mechanical Spark Traps
Disconnect power to the welding downdraft table.
Remove the top perforated grid plates to access the primary settling chamber and the secondary stainless steel labyrinth flame arrestor.
Wipe away loose metal dust and check the baffles for damage. If working with oily or coated metals, clean the steel mesh with a neutral degreaser, ensuring it is completely dry before reinstalling.
2. Troubleshooting Matrix: Resolving Common Airflow Issues
| Symptom | Probable Operational Cause | Corrective Action |
| Smoke Escapes Vertically | Low face velocity caused by a blinded filter or incorrect fan rotation direction. | Run the automatic pulse cleaning cycle. If the pressure reading stays above 2000 Pa, replace the filter element. |
| Excessive Grid Vibration | Heavy particle buildup on the centrifugal fan blades or uneven flooring. | Inspect the high-efficiency internal fan assembly and clear any crusting; secure the heavy-duty caster brakes. |
| Dust in Re-circulated Exhaust | Puncture in the PTFE membrane or a compromised silicone compression seal. | Remove the cartridge and check for cracks or tears in the pleated media. Tighten the top mounting seal gaskets. |
| Pulse System Ineffective | Low supply pressure or moisture/oil contamination in the shop's air lines. | Ensure the input compressor maintains $0.5 - 0.6\text{ MPa}$. Install an inline air dryer to prevent moisture from ruining the dry dust cake. |
3. FAQ
Q: Can I wash the PTFE membrane cartridges of my downdraft table with water?
A: No. Washing with water or liquids will ruin the flame-retardant properties and blind the sub-micron pores of the nano-coating. Only use the built-in compressed air pulse-jet system or dry, low-pressure manual compressed air guns to clear surface buildup.
Q: How often do the primary filters require full replacement?
A: Thanks to the automatic pulse-jet cleaning system, a genuine Power Space PTFE polyester membrane filter typically lasts between 18 to 24 months under standard double-shift fabrication conditions.
Q: What maintenance adjustments are needed when switching from carbon steel to aluminum grinding?
A: You must completely empty and clean the lower dust drawers and spark traps before switching materials. Mixing carbon steel dust (iron oxide) with aluminum dust creates a volatile thermite mixture that can ignite from a single grinding spark.
