Breathe Cleaner Air: The Ultimate Guide to Choosing a Portable Welding Fume Extractor
Welding is the backbone of modern industry. From erecting skyscrapers and building ships to fabricating intricate machinery and repairing vehicles, the ability to fuse metal is indispensable. However, this essential process generates a significant and often underestimated hazard: toxic welding fumes.Today, savvy and safety-conscious managers understand that the only truly effective method is source capture—removing the hazard directly as it's created. This is where a portable welding fume extractor becomes one of the most critical tools in any metalworking environment.
Understanding the Dangers of Welding Fumes
The smoke that rises from a welding torch is not harmless. It's a dense cloud of microscopic solid particles and toxic gases created as both the base metal and the consumable electrode are vaporized at extreme temperatures. This plume contains a dangerous cocktail of substances, including:
Hazardous Particulates: Fine metal oxides from materials like manganese, chromium (especially from stainless steel), zinc, and iron. These sub-micron particles can travel deep into the lungs.
Toxic Gases: Shielding gases can produce harmful byproducts like ozone, nitrogen oxides, and carbon monoxide.
Exposure to these fumes can have immediate and long-term health consequences. Welders may experience "metal fume fever," an intense, flu-like illness that occurs hours after exposure. Over the long term, the risks are far more severe, including chronic bronchitis, reduced lung capacity, and an increased risk of cancer. The cost of inaction is enormous, manifesting in lost productivity, high employee turnover, and the potential for crippling fines from workplace safety inspections.

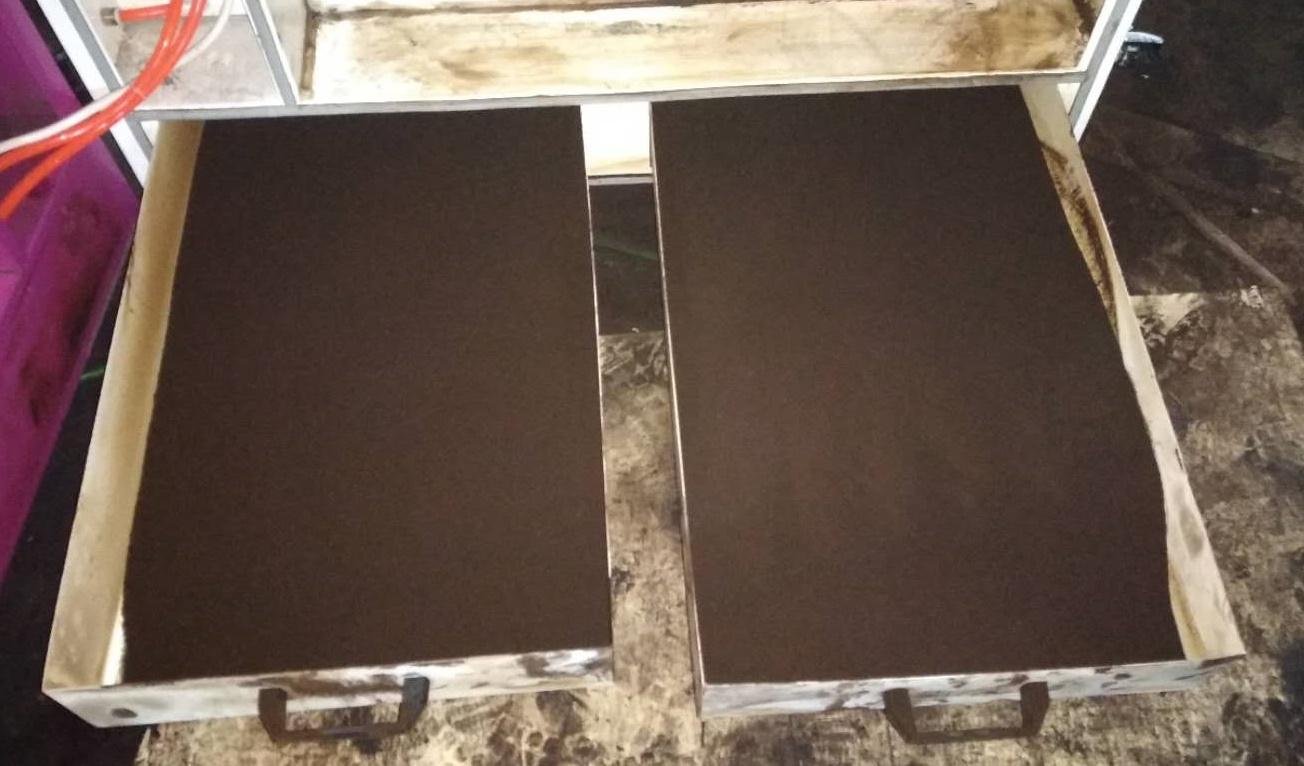

(Dust Cupture from Fume Extraction Unit)
Key Benefits of a Portable Fume Extraction System
While large, fixed fume extraction systems have their place, their lack of flexibility is a major drawback. Welding jobs are rarely confined to a single bench. A portable welding fume extractor offers a dynamic solution that adapts to the real-world needs of a busy workshop.
Flexibility Where You Need It Most
The primary advantage is the ability to bring the solution directly to the problem. Whether a welder is working on a large, immovable piece of equipment, inside a vehicle, or in a tight corner of the facility, a mobile unit can be easily wheeled into position. High-quality models are equipped with durable casters and a long, highly flexible suction arm that can be positioned precisely where needed, ensuring maximum fume capture regardless of the job's location.
Cost-Effectiveness and Simplicity
Investing in a mobile fume extractor is significantly more affordable than designing and installing a complex, centralized system with extensive ductwork. There are no heavy installation costs or structural modifications needed. These units are self-contained, "plug-and-play" systems. Simply roll it to the job, plug it in, position the arm, and you have instant, effective weld fume control.
Unmatched Source Capture Efficiency
Health and safety experts agree that capturing contaminants at the source is the most effective way to protect workers. A portable extractor excels at this. Its flexible suction arm can be positioned within inches of the weld, capturing the entire fume plume before it has a chance to disperse into the welder's breathing zone or the general workshop environment. This targeted approach is vastly more efficient than trying to clean the air in an entire room.
Core Features to Look For Portable Fume Extractor
Not all portable extractors are created equal. When investing in welder safety, it’s crucial to select a unit with a robust and well-engineered design. Key features include:
Advanced Multi-Stage Filtration
This is the heart of the machine. An effective system uses a sequence of filters to ensure the air returned to your workshop is clean and safe.
Spark Arrestor: The first line of defense is a metal mesh filter that catches hot sparks and spatter, preventing them from reaching and damaging the main filters.
HEPA Filter Cartridge: The most critical component is a high-efficiency particulate air (HEPA) filter. Look for cartridges made from flame-retardant materials, such as spunbond polyester, that are capable of capturing over 99.9% of harmful sub-micron particles.
Automatic Pulse-Jet Cleaning: Premium models include an automatic dust cleaning system. This feature uses compressed air to periodically pulse the filter from the inside out, dislodging accumulated dust into a collection tray. This maintains optimal suction performance and significantly extends the life of the filter, saving on replacement costs.
Powerful and Quiet Motor
The unit must have a high-performance industrial motor and fan to generate the airflow needed for effective fume capture, even at a distance. At the same time, look for models with built-in noise reduction and sound-dampening materials to ensure the extractor doesn't contribute to a loud and distracting work environment.
Durable Construction and Smart Design

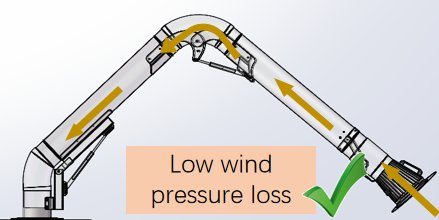

A workshop is a demanding environment. The extractor’s housing should be made of thick, high-quality sheet metal with a durable finish to resist impacts and corrosion. The flexible suction arm should be self-supporting, allowing for easy one-handed positioning, and capable of rotating 360 degrees to reach any angle.
Where is a Mobile Welding Smoke Collector Essential
The versatility of a portable welding fume extractor makes it an indispensable tool across a vast range of industries. Its mobility is key in environments where welding tasks are varied and spread out, including:
Automotive Repair and Custom Fabrication: Perfect for working on different vehicles around the shop.
Shipbuilding and Marine Repair: Ideal for use in the confined and varied spaces within a ship's hull.
Construction and Field Repairs: Can be easily transported to job sites for on-location welding.
Manufacturing and Metalworking: Provides flexible fume control for changing production lines and maintenance tasks.
Vocational Schools and Training Centers: Offers a safe environment for students learning to weld in different stations.
By capturing dangerous contaminants at their source, these mobile systems protect worker health, help you meet safety standards, and provide the operational adaptability that modern workshops demand. It is a critical investment that pays dividends in safety, morale, and the long-term success of your business.
