Centralized Welding Dust Collectors for Industrial Operations

Industrial-scale systems are engineered to handle the significant volume of hazardous fumes and particulate matter generated by continuous, multi-point welding. Unlike smaller units, a centralized system acts as the lungs of the entire facility, providing consistent and highly effective air purification.

This guide will delve into the architecture, benefits, and applications of a modern industrial fume control system, explaining why it is the superior choice for businesses committed to the highest standards of workplace safety, operational efficiency, and environmental responsibility.

When Do You Need to Upgrade to a Centralized Fume Extraction System?

Recognizing the moment to transition from localized solutions to a facility-wide system is key to maintaining a safe environment. While portable units are excellent for isolated jobs, they become impractical and inefficient when your operational scale increases. You should strongly consider upgrading to a centralized system if you observe the following:

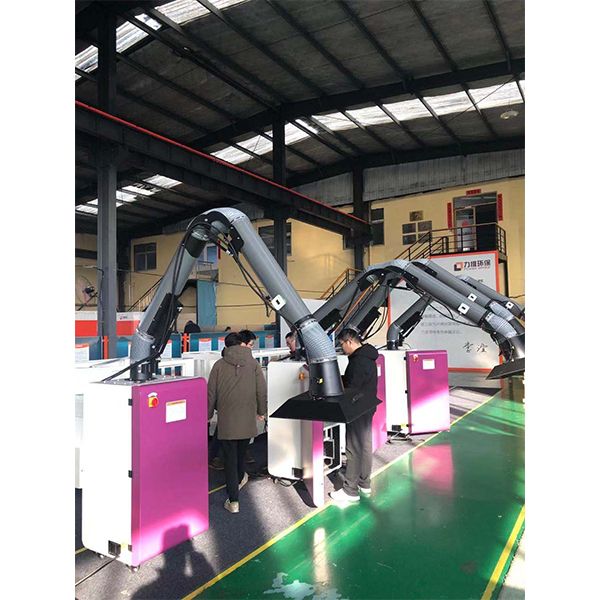

• Multiple Simultaneous Welding Stations: If several welders are working at once, multiple portable units become cumbersome, noisy, and difficult to manage. A centralized system provides consistent suction to all stations from a single, powerful source.

• Automated and Robotic Welding: Robotic welding cells operate at high speeds and produce a continuous, high volume of fumes. A dedicated robotic welding fume extractor integrated into a central system is the only way to effectively protect sensitive electronics and maintain production quality.

• Large Workpieces and Fabrication Bays: When working on large structures like vehicle frames or structural steel, fumes can spread over a wide area, making source capture with a small unit impossible.

• Stringent Air Quality Goals: If your company aims to meet or exceed OSHA's Permissible Exposure Limits (PELs) for substances like manganese or hexavalent chromium, a centralized system provides the comprehensive air cleaning power necessary for compliance.

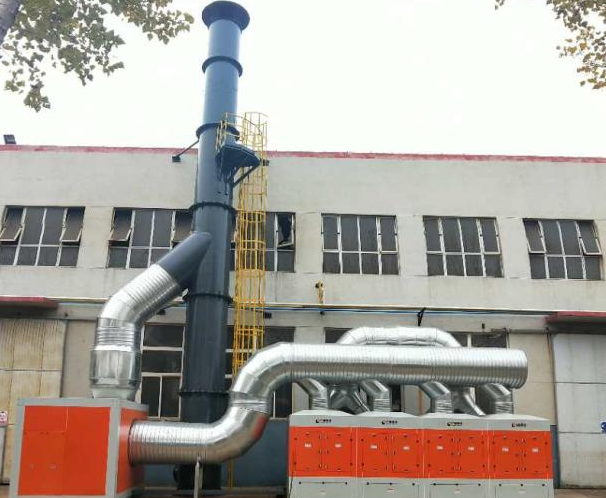

Core Components of a High-Performance Welding Dust Collector

A modern centralized fume extraction system is a sophisticated piece of engineering, combining power, intelligence, and advanced filtration. Understanding its core components reveals why it is so effective.

The Powerhouse: Integrated Fan and Motor

At the heart of the collector is a large, industrial-grade centrifugal fan. Designed to move a high volume of air under high static pressure, this fan creates powerful suction that can be ducted to numerous points across the workshop floor. The entire fan and motor assembly is often housed in a sound-dampened enclosure to minimize operational noise, creating a more comfortable work environment.

The Heart of the System: Advanced Filter Cartridge Technology

The true performance of the system lies in its filters. Leading multi-cartridge dust collectors utilize vertically oriented filter cartridges, a critical design feature that uses gravity to its advantage. Unlike horizontal filters where dust can settle on top, the vertical design ensures that dislodged particles fall directly into the collection drawer, leading to more effective cleaning and longer filter life.

These cartridges are typically constructed from a flame-retardant polyester material coated with a PTFE (polytetrafluoroethylene) membrane. This advanced membrane is key to its performance, offering:

• Sub-Micron Particle Capture: It can filter out even the most dangerous microscopic particles with an efficiency rating exceeding 99.9%.

• Excellent Dust Release: The slick surface of the PTFE prevents dust from deeply embedding in the filter, allowing it to be easily pulsed off during the cleaning cycle.

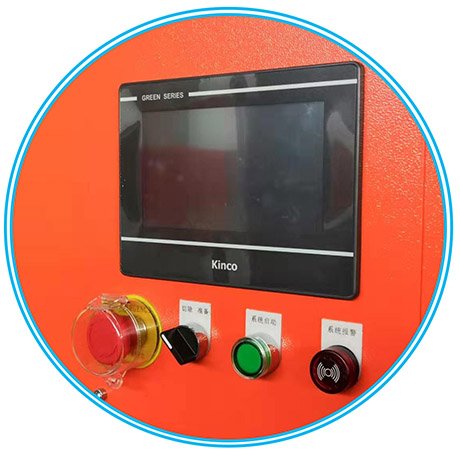

The Brains: Intelligent PLC Control and Automatic Pulse-Jet Cleaning

Modern systems are automated for maximum efficiency. A Programmable Logic Controller (PLC) acts as the central brain, monitoring and controlling the entire operation. This PLC is connected to a differential pressure gauge that constantly measures the amount of dust buildup on the filters.

Instead of running a cleaning cycle on a fixed timer, the PLC activates the reverse pulse-jet cleaning system only when the pressure reaches a pre-set level. This "on-demand" cleaning provides two major benefits:

1. Saves Energy: It significantly reduces the consumption of expensive compressed air.

2. Extends Filter Life: It cleans the filters only when necessary, minimizing wear and tear on the filter media.

The Benefits of a Centralized Industrial Fume Control System

Investing in a centralized welding dust collector delivers tangible returns across safety, productivity, and your bottom line.

Unmatched Air Quality and Worker Safety

By removing the vast majority of airborne contaminants, the system creates a clean and healthy breathing environment for every employee in the facility. This drastically reduces the risk of both short-term illnesses like metal fume fever and long-term respiratory diseases, demonstrating a profound commitment to worker well-being.

Enhanced Operational Efficiency and Productivity

Metallic dust is highly conductive and can wreak havoc on sensitive electronics. By keeping the air clean, a centralized system protects valuable equipment like CNC machines, robotic controllers, and computers from short-circuiting and failure, preventing costly downtime. Furthermore, a cleaner environment is a more pleasant place to work, boosting morale and productivity.

Long-Term Cost Savings

The intelligent design of a centralized system leads to significant long-term savings. The automated, on-demand cleaning system reduces energy costs. The high-quality, long-life filters mean less frequent replacement and lower consumable expenses. Most importantly, by preventing dust-related damage to your primary production equipment, you avoid catastrophic repair bills and lost revenue.

Ideal Applications for a Centralized Welding Dust Collector

The power and scale of these systems make them the ideal solution for a range of demanding industrial environments:

• Robotic Welding Cells

• Vocational Schools & Welding Training Centers

• Heavy Machinery & Steel Structure Fabrication

• Automotive & Aerospace Manufacturing Lines

• Any facility with multiple, active welding bays

Conclusion: A Strategic Investment in a Safer Future

A centralized welding dust collector is more than just a piece of safety equipment; it is a strategic investment in the core health of your entire operation. It is a declaration of your commitment to safety, a tool for maximizing the lifespan of your equipment, and a pathway to greater operational efficiency.
